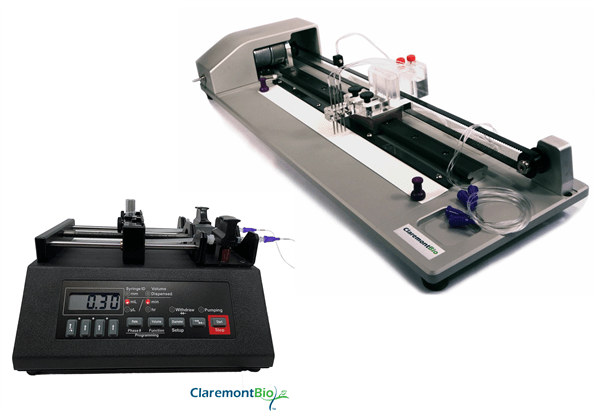

ClaremontBio's Automated Lateral Flow Reagent Dispenser (ALFRD)

ClaremontBio's Automated Lateral Flow Reagent Dispenser (ALFRD) - Image 1 of 0

ClaremontBio's Automated Lateral Flow Reagent Dispenser (ALFRD) - Image 2 of 0

ClaremontBio's Automated Lateral Flow Reagent Dispenser (ALFRD) - Image 3 of 0

ALFRD and Syringe Pump Core Package

ALFRD Core Package

with New Era Four Channel Syringe Pump and Standard Accessories!

Start producing lateral flow tests
Cost-effective option for smaller scale needs
2 Lines Maximum

Overview:
ClaremontBio's ALFRD is an inexpensive and reliable alternative for dispensing reagents onto membranes or paper. It is ideal for development or small-scale production lateral flow or paper-based fluidic applications and is capable of producing multiple and reproducible lines simultaneously.

Includes: Dispenser, Standard accessories and Power Source.

Product Code: 07.701.01

Qty:

Key Features:

Reproducible, well defined test lines
No heating of reagents
Low-contact, adjustable dispense tips
Dispense colloidal conjugate or viscous solutions
Interchangeable and low-cost dispense heads and tips
Adjustable dispense volume
Simultaneous dispensing of up to two lines
Accommodates 30 cm membrane length of varying width
Includes: Lateral Flow Reagent Dispenser, New Era 4000 two-channel syringe pump

Applications:

Lateral Flow / Immunochromatographic strip test / Rapid Diagnostic Tests (RTDs)
Paper-based fluidics assays
Flow-through assays

Standard Accessories

10x 1mL Syringes
10x Dispensing Tips
1 Set of Magnets
1 3/32" Hex Wrench
Shim Height Adjustment Kit

Specifications:

Dimensions (L x W x H): 457 x 156 x 66 mm (excluding external power supply and syringe pump)
Weight: 2.45 kg
Power: 120 VAC; provides variable 3 – 12 V DC to ALFRD
Dispense Area (L x W): 302 x 64 mm

Peer-Reviewed Citations & References:
Lateral Flow Reagent Dispenser Citations and References

Watch ALFRD in Action!

Discover More Products:
ALFRD Accessories
Assay Development Starter Kit

HTML Editor - Full Version

Top Publications Citing Use of ALFRD Product

Nanoscale. 2023 Jul 10;10.1039/d3nr01858j.

Development of a thermochromic lateral flow assay to improve sensitivity for dengue virus serotype 2 NS1 detection

Automated Lateral Flow Reagent Dispenser (ALFRD)purchased from ClaremontBio

Analytical Methods. 2023 June 8;15(22):2721-2728.

Capillary driven microfluidic sequential flow device for point-of-need ELISA: COVID-19 serology testing

Automated Lateral Flow Reagent Dispenser (ALFRD)purchased from ClaremontBio

Journal of Clinical Virology Plus. 2023 June 2;10.1016/j.jcvp.2023.100144.

Performance evaluation of a rapid dengue NS1 antigen lateral flow immunoassay test with reference to dengue NS1 antigen-capture ELISA

Automated Lateral Flow Reagent Dispenser (ALFRD) purchased from ClaremontBio

Practical Laboratory Medicine. 2023 Apr 13;35e00314.

Development of a quantitative fluorescence lateral flow immunoassay (LFIA) prototype for point-of-need detection of anti-Müllerian hormone

Automated Lateral Flow Reagent Dispenser (ALFRD) purchased from ClaremontBio

SPIE Proceedings Vol. 12387.2023 March 16;10.1117/12.2648423.

Paper fluidic platform with dual-optical readouts to detect microRNA-20a (miR-20a) for preeclampsia

Automated Lateral Flow Reagent Dispenser (ALFRD) purchased from ClaremontBio

Analytical Chimica Acta. 2023 Jan 25;1239:340695.

Quantitative lateral flow immunoassay for rapid detection of procollagen type I N-terminal propeptide in the monitoring of osteoporosis treatment

Automated Lateral Flow Reagent Dispenser (ALFRD) purchased from ClaremontBio

3 Biotech. 2022 Oct;12(10):234.

Fabrication of lateral flow immunoassay strip for rapid detection of acute hepatopancreatic necrosis disease

Automated Lateral Flow Reagent Dispenser (ALFRD) purchased from ClaremontBio

Advanced NanoBiomed Research.2022 Sept;10.1002/anbr.202200026.

Lateral Flow Test (LFT) Detects Cell-Free MicroRNAs Predictive of Preterm Birth Directly from Human Plasma

Automated Lateral Flow Reagent Dispenser (ALFRD) purchased from ClaremontBio

Biosensors and BioElectronics: X. 2022 May;10:100136.

Fabrication of lateral flow immunoassay strip for rapid detection of acute hepatopancreatic necrosis disease

Automated Lateral Flow Reagent Dispenser (ALFRD) purchased from ClaremontBio

Current Research in Biotechnology. 2022;4:08.002.

Lateral flow assay for detection and recovery of live cell Neisseria gonorrhoeae

Automated Lateral Flow Reagent Dispenser (ALFRD) purchased from ClaremontBio
